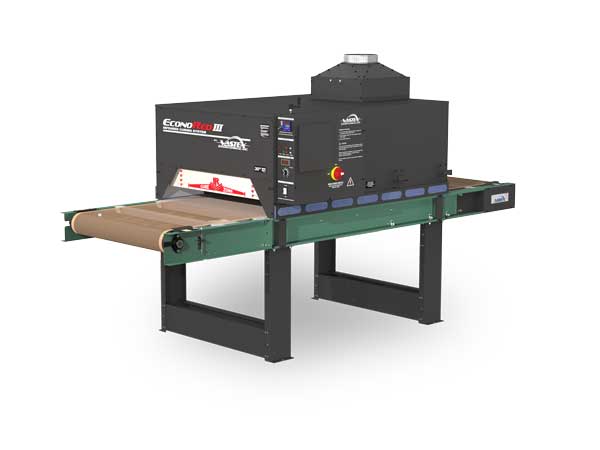

EconoRed III dryers in 30 and 54 in. belt widths cure garments screen-printed with plastisols, water-based inks or discharge at higher rates, in a smaller footprint, at lower cost and more quietly than the BigRed3 dryers they replace.
Model ER-III-30, with 30 in. wide belt and three 24 in. wide heaters (total 10,800 watts) cures up to 475 plastisol-printed garments/h, or 100 garments/h screen-printed with water-based ink or discharge. .
Model ER-III-54, with 54 in. wide belt and three 48 in. heaters (total 21,600 watts) cures up to 950 plastisol-printed garments/h, or 300 garments/h screen-printed with water-based ink or discharge. .
Capacity of both models can be doubled, tripled or quadrupled by adding one, two or three modular heating chambers and conveyor belt extensions - as new or when needs grow. .
A top-mounted ventilation system filters exhaust air, cools the enclosure's outer skin, and evacuates moisture and fumes from the heating chamber. It also makes ER-III dryers over 20 percent quieter and 5 in. narrower, and allows the control box to be positioned the right side (standard) or left side of the enclosure to suit shop layouts. .
All heaters feature closely spaced coils that provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing, and come with a 15-year warranty. .
The Vastex Infrared Focusing Systemallows heater adjustment to any height from 2 to 7 in. above the belt, allowing the operator to compensate for bulky garments or hats. .
All models include a digital belt speed display and a belt tracking system for increased belt life. The digital PID temperature controller is accurate to ±1°F allowing the operator to fine-tune or accurately repeat drying results at any future time.
