The Mini Conveyor UV Cure System is the workhorse for small production pieces and cures substrates up to six inches wide. The Mini Conveyor provides intense ultraviolet energy that's ideal for: <ul> <li>Curing ultraviolet paints, inks and coatings</li> <li>Photoactivation of UV-sensitive adhesives</li> <li>Color matching</li> </ul> The Mini Conveyor is available in a standard three-foot length or the extended 54-inch with additional conveyor areas for infeed and outfeed.

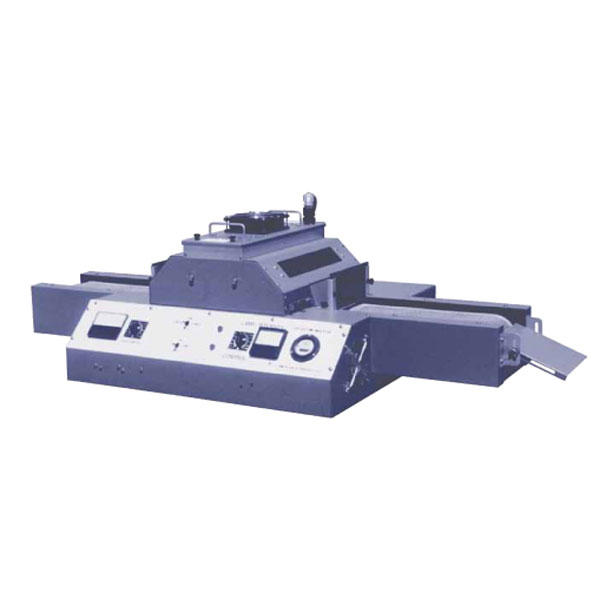

American Ultraviolet Mini Unit
<p>American Ultraviolet's systems are elliptically focused and incorporate replaceable reflector liners in heat sink extrusions. Each lamp assembly utilizes steel-bladed cooling fans and high voltage key-locked connectors. The exhaust/vacuum, system, holds stock to the belt to prevent jams. American Ultraviolet's variable speed conveyer includes digital feet per minute indicator, UV resistant coated fiberglass belt, solid state speed control and adjustable legs. All conveyers are constructed with solid beds throughout their length to guarantee stability at any height. The standard curing systems are available in single and double lamp configurations. Lamps i can operate at 300, 200, or 125 watts per inch.</p>

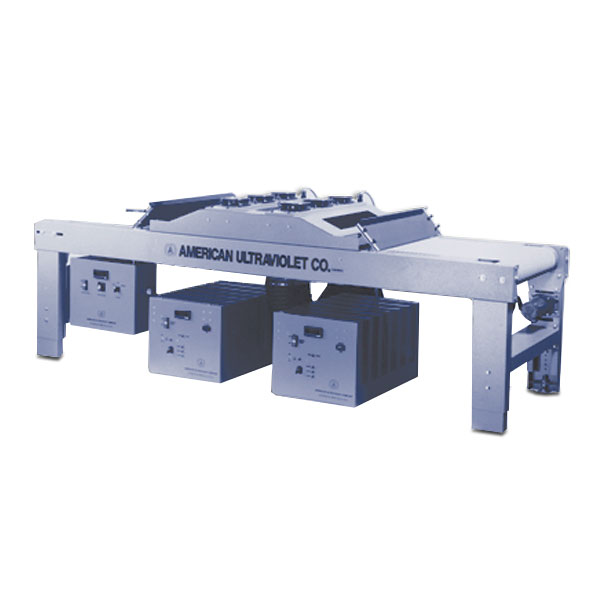

American Ultraviolet Standard Unit
<p>American Ultraviolet's state-of-the-art "Super Cool" conveyorized curing system incorporates the latest technology in air flow that maintains substrate temperatures at or below 90° Fahrenheit. (Based on ambient temperatures of 72° G, a belt speed of 160 FPM, and 2 lamps at 200 WPI) <br><br> All systems are elliptically focused and incorporate replaceable reflector liners in heat sink extrusions. Each lamp assembly utilizes steel-bladed cooling fans and high voltage key-locked connectors.</p>

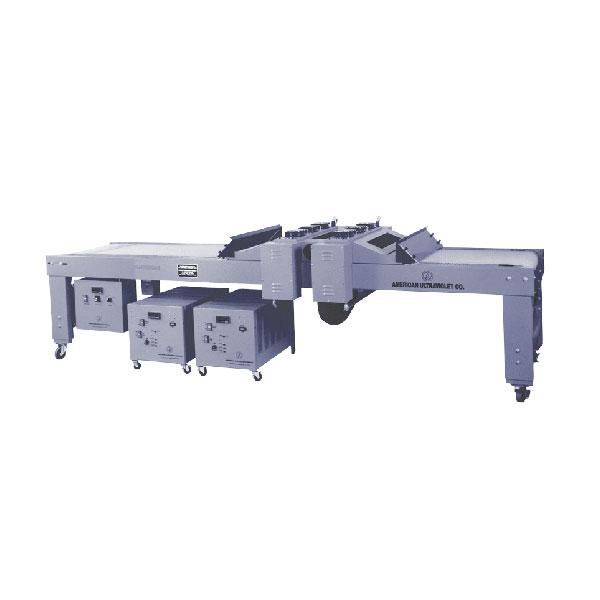

American Ultraviolet Super Cool
